Recording images with the yeast cell counter

After the measurement has begun, a live image of the microscope will be displayed. If this image is blurry, the sample must be focused by turning the focus wheel on the hardware.

You should see a clear image of the cells in the middle of the screen before taking a picture.

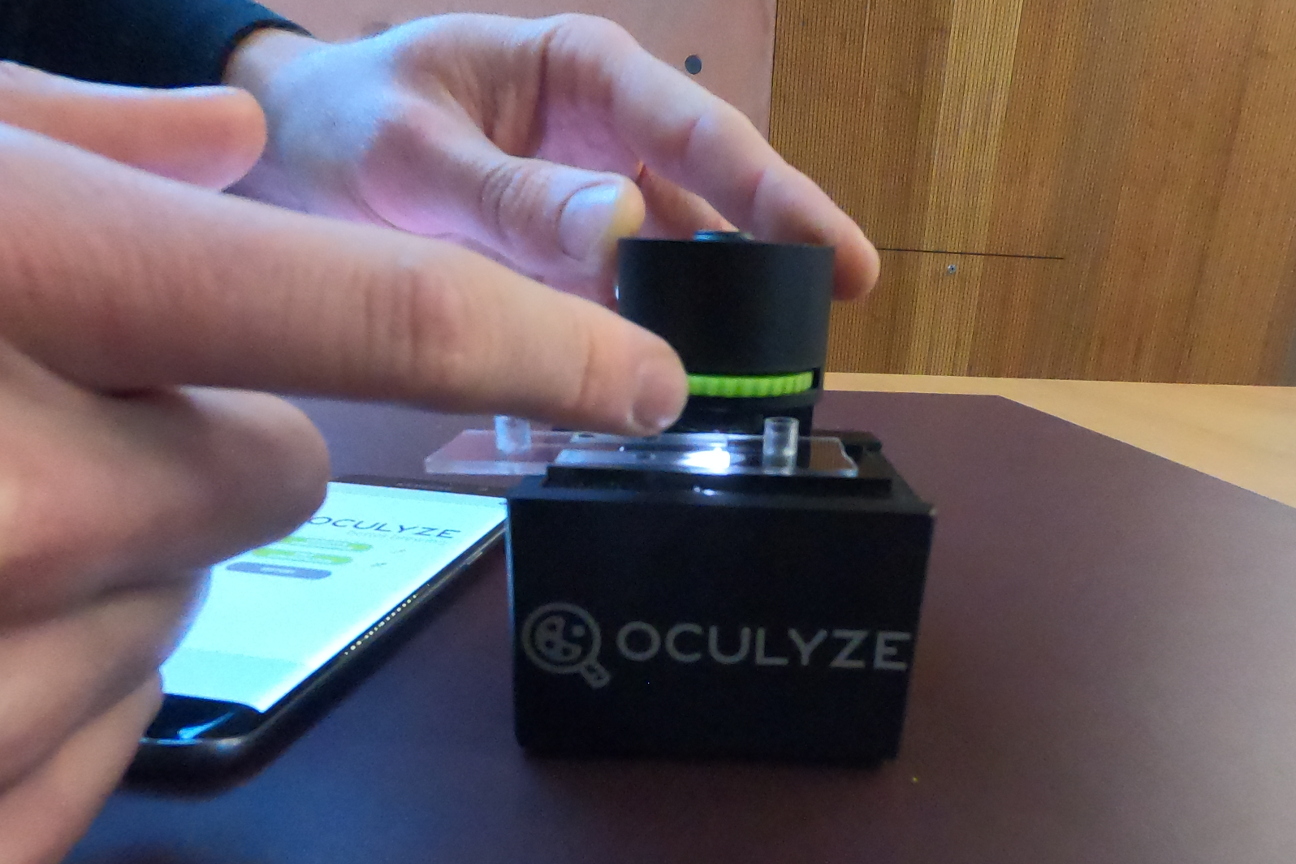

Adjusting the focus wheel to apply light pressure to the sample chamber is enough to bring the cells into focus to see them clearly. When using a new yeast cell microscope, a little bit more pressure is needed, since the pads for the chamber fixing compress with repeated usage.

Screwing it too tightly will lead to blurry pictures and possibly damage the sample chamber or even the device itself.

When the sharpness indicator is on, an indicated number in a circle will be shown at the bottom left hand side of the screen. This shows in real time how high the sharpness level of that particular image is. The sharpness indicator values will change through the turning of the focus wheel. When you reach the highest possible value, the image has reached an optimal level of sharpness and a photo can be taken. Since the sharpness indicator is influenced by the number of cells within each image, it’s important to reach the highest value indicated for each image, not based on a specific value each time. (i.e. one image might have the highest value on the sharpness indicator at 2300 and another only 50; use the highest value for each image).

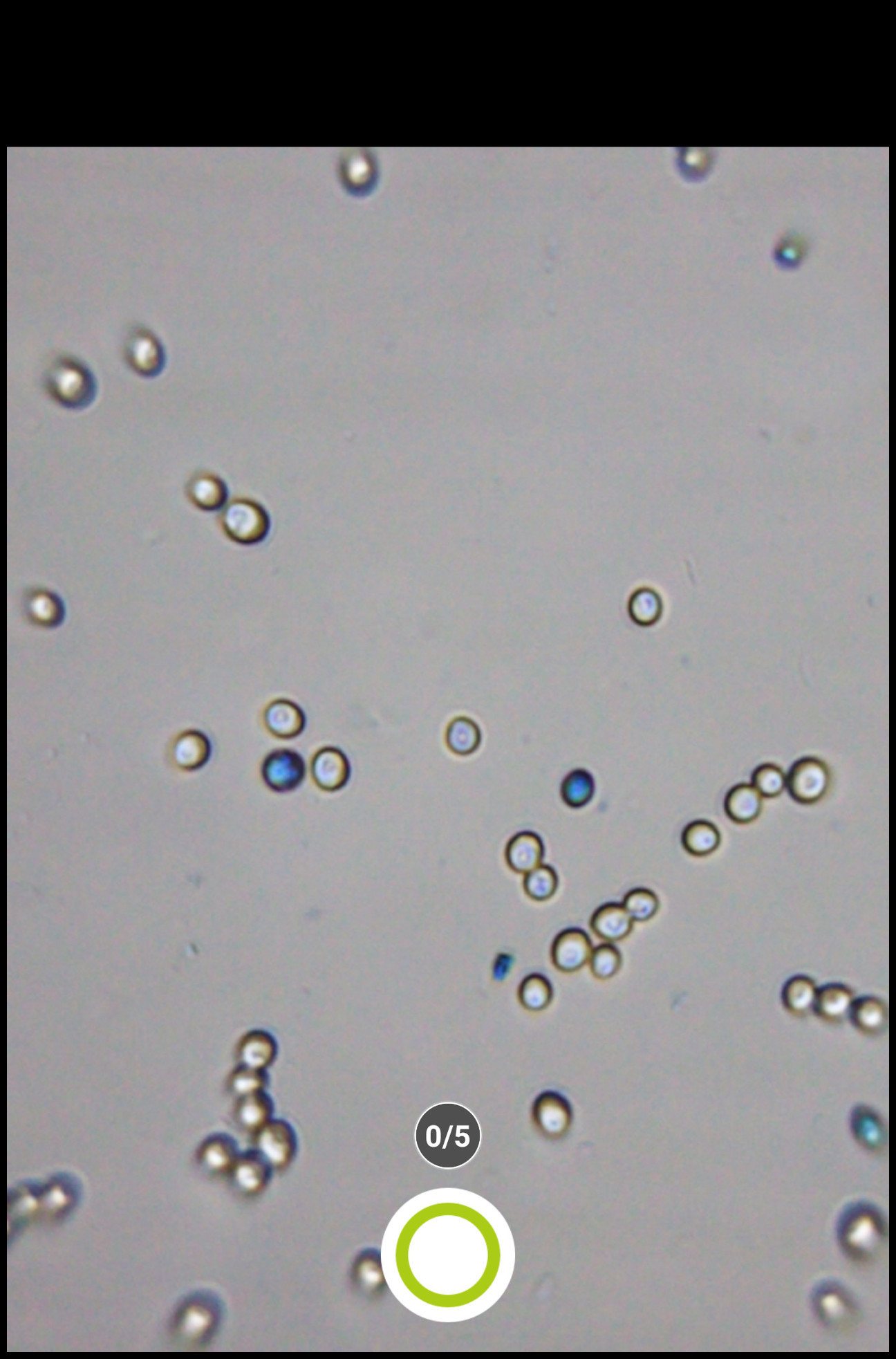

Pictures can be taken using the green – white button. The counter above the button shows how many pictures have been taken already.

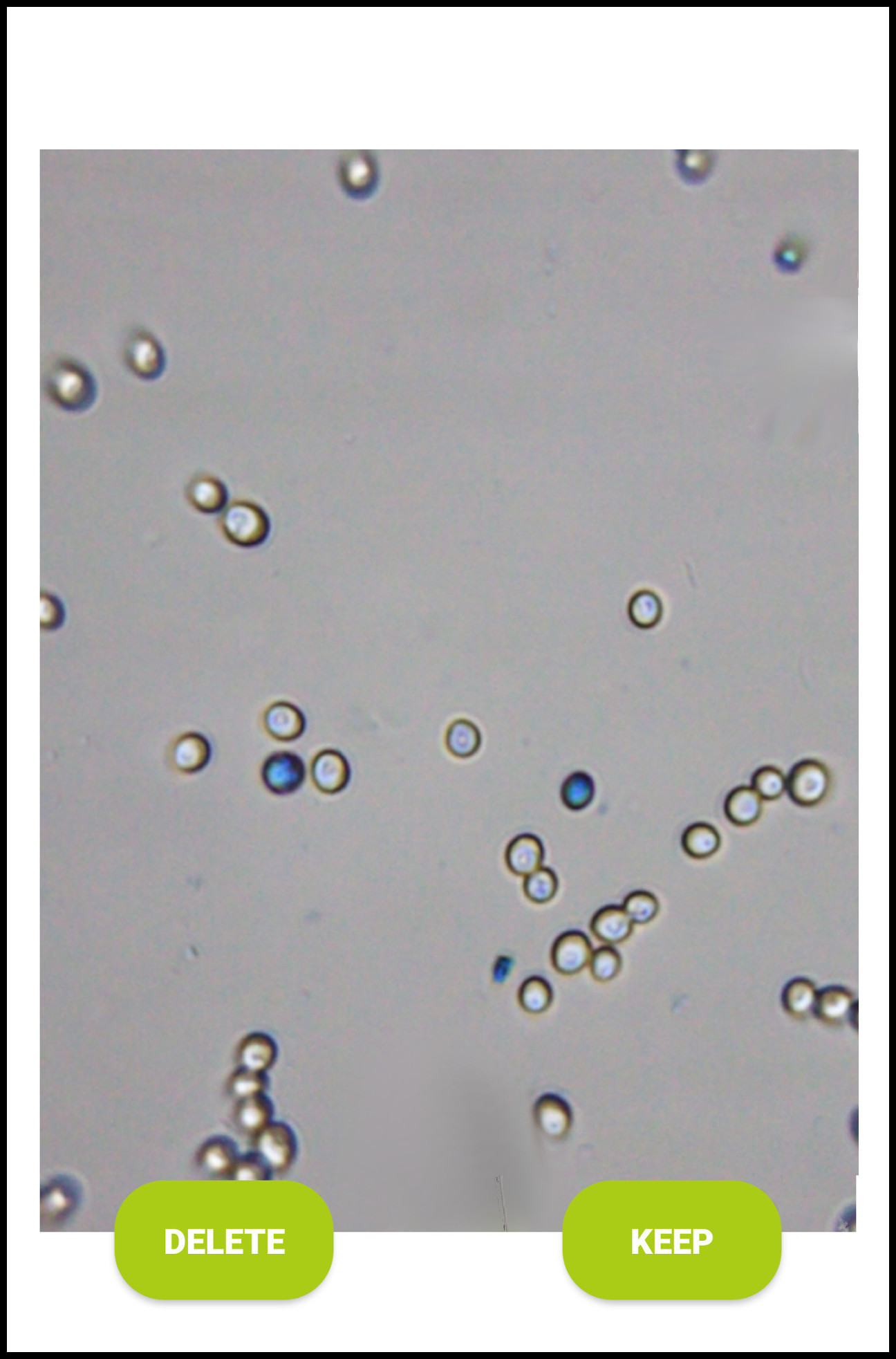

After the picture is taken, that picture will be displayed on your screen. Using the “Delete” and “Keep” button, the user may decide whether to dispose of the picture or to keep it for analysis. The app also performs an initial automated quality check of the image. If the image contains far too many yeast cells or is significantly blurry, a message will be displayed, and the “Keep” button will be greyed out. In this case, you must delete the image using the “Delete” button.

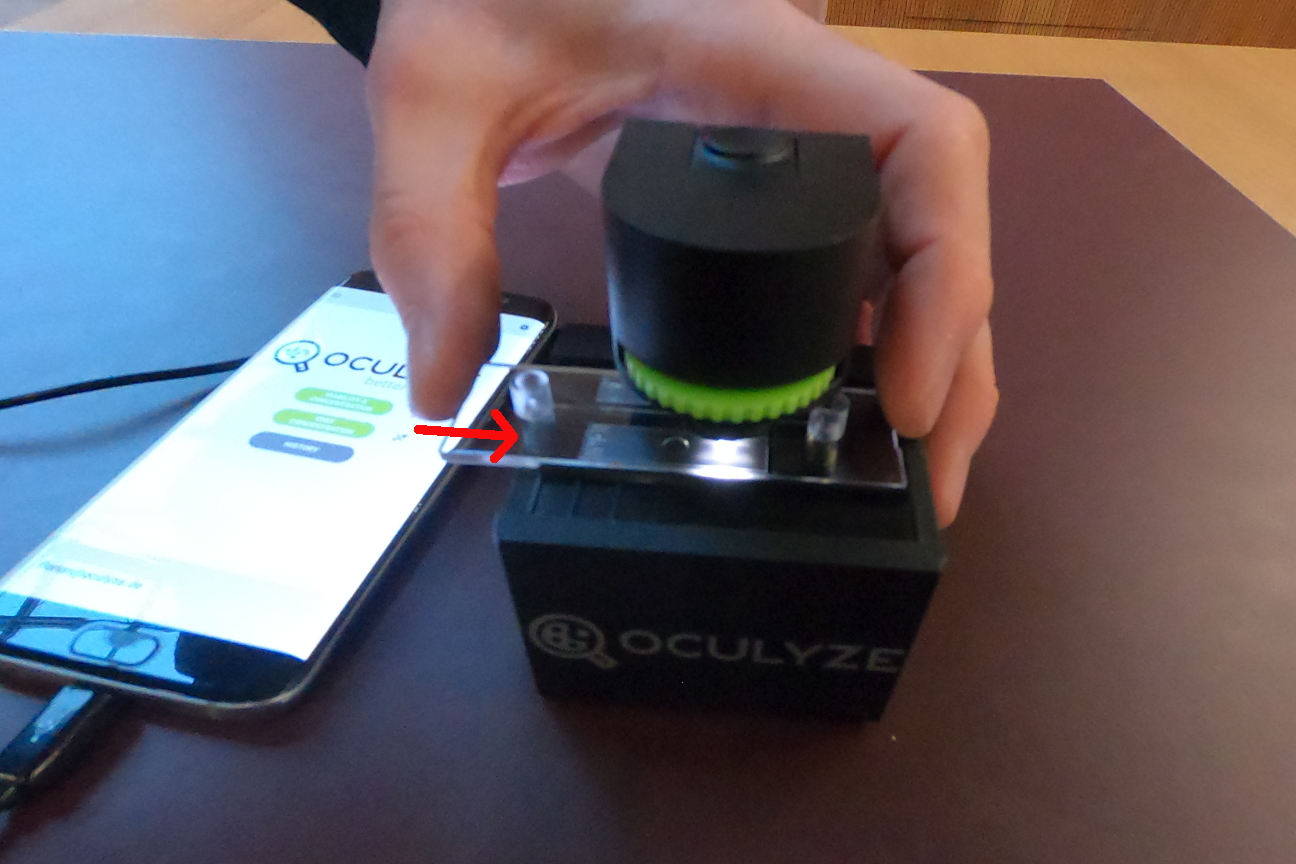

Depending on the app settings, between 1 and 10 images must be taken for each analysis. The default option is 5 pictures. The sample chamber must be moved somewhat between each image so that different cells can be recorded. To do so, you have to loosen the focus wheel, then push the chamber to the next marking and readjust the focus after each image is taken. Should an image be discarded, a replacement image must be recorded.

In summary – to take pictures for the analysis, the following steps are performed:

Step 1: connect the microscope via cable to your mobile device and open the mobile app
Step 2: put the chamber into the microscope and slide it up to its first marking
Step 3: choose in the app whether you want to conduct a measurement with or without viability
Step 4: now adjust the focus wheel of the microscope until you see a sharp image on your mobile device
Step 5: take the picture and click “keep” to add the image to the analysis
Step 6: release the focus wheel a bit to move the chamber to the next marking to take the next image
Step 7: repeat the steps above to take 5 images

After all images are taken, the sample data can be entered.
